聯軸器型號 |
功率/轉速 (Kw/rpm) |
公稱扭矩 (KNm) |
峰值扭矩 (KNm) |
特大許用轉速 (r/min) |
A (mm) |
B (mm) |
C(mm)max |
E(mm) |
F (mm) |
L(mm) |
|
TBR6115 |
0.072 |
0.68 |
2.4 |
32000 |
115 |
62 |
40 |
160 |
45 |
250 |
|
TBR6135 |
0.16 |
1.52 |
3.3 |
28000 |
135 |
82 |
55 |
170 |
60 |
290 |
|
TBR6152 |
0.22 |
2.1 |
6.1 |
25000 |
152 |
98 |
65 |
190 |
70 |
330 |
|
TBR6175 |
0.39 |
3.7 |
10.8 |
23000 |
175 |
105 |
75 |
210 |
80 |
370 |
|
TBR6196 |
0.49 |
4.6 |
12.4 |
21000 |
196 |
115 |
80 |
230 |
85 |
400 |
|
TBR6210 |
0.54 |
5.15 |
14.2 |
20000 |
210 |
130 |
90 |
230 |
95 |
420 |
|
TBR6231 |
0.86 |
8.21 |
24.1 |
18000 |
231 |
150 |
105 |
250 |
110 |
470 |
|
TBR6247 |
1.28 |
12.22 |
32 |
17000 |
247 |
167 |
115 |
250 |
120 |
490 |
|
TBR6272 |
2.16 |
20.62 |
45 |
16000 |
272 |
182 |
125 |
260 |
130 |
520 |
|
TBR6300 |
2.9 |
27.69 |
52.9 |
14000 |
300 |
205 |
140 |
270 |
145 |
560 |
|
TBR6330 |
3.46 |
33 |
78 |
12000 |
330 |
217 |
155 |
290 |
160 |
610 |
|
TBR6360 |
4.13 |
39.44 |
101 |
10000 |
360 |
247 |
170 |
310 |
175 |
660 |
|
TBR8212 |
0.86 |
8.21 |
24.1 |
20000 |
212 |
130 |
90 |
230 |
95 |
420 |
|
TBR8233 |
1.28 |
12.22 |
32 |
18000 |
233 |
150 |
105 |
250 |
110 |
470 |
|
TBR8248 |
2.16 |
20.62 |
45 |
17000 |
248 |
167 |
115 |
250 |
120 |
490 |
|
TBR8274 |
2.9 |
27.69 |
52.9 |
16000 |
274 |
182 |
125 |
260 |
130 |
520 |
|
TBR8302 |
3.46 |
33 |
78 |
14000 |
302 |
205 |
140 |
270 |
145 |
560 |
|
TBR8333 |
4.13 |
39.44 |
101 |
12000 |
333 |
217 |
150 |
290 |
160 |
610 |
|
TBR8363 |
6.6 |
63 |
140 |
10000 |
363 |
247 |
165 |
310 |
175 |
660 |
|
TBR8396 |
8.5 |
81.11 |
197 |
9500 |
396 |
263 |
175 |
320 |
180 |
680 |
|
TBR8425 |
11 |
105 |
217 |
9000 |
425 |
268 |
190 |
390 |
195 |
780 |
|
TBR8457 |
14 |
133.7 |
320 |
8500 |
457 |
300 |
205 |
400 |
210 |
820 |
|
TBR8493 |
17 |
162.3 |
355 |
8000 |
493 |
336 |
220 |
410 |
220 |
850 |
|
TBR8525 |
21 |
200.5 |
390 |
7500 |
525 |
344 |
240 |
450 |
240 |
930 |
|
TBR8570 |
26 |
248.3 |
570 |
7000 |
570 |
387 |
260 |
460 |
260 |
980 |
|
TBR8610 |
34 |
324.7 |
730 |
6000 |
610 |
419 |
285 |
480 |
290 |
1060 |
|
TBR0365 |
8.5 |
63 |
140 |
10000 |
365 |
247 |
165 |
310 |
175 |
660 |
|
TBR0400 |
11 |
81.11 |
197 |
9500 |
400 |
263 |
175 |
320 |
180 |
680 |
|
TBR0430 |
13 |
105 |
217 |
9000 |
430 |
268 |
190 |
390 |
195 |
780 |
|
TBR0460 |
16 |
133.7 |
320 |
8500 |
460 |
300 |
205 |
400 |
210 |
820 |
|
TBR0496 |
20 |
162.3 |
355 |
8000 |
496 |
336 |
220 |
410 |
220 |
850 |
|
TBR0537 |
25 |
238.75 |
548 |
7500 |
537 |
344 |
240 |
450 |
240 |
930 |
|
TBR0580 |
35 |
334.25 |
770 |
7000 |
580 |
387 |
260 |
460 |
260 |
980 |
|
TBR0630 |
42 |
401.1 |
920 |
6000 |
630 |
419 |
285 |
480 |
290 |
1060 |
|
聯軸器型號 |
擰緊力矩(Nm) |
總質量(Kg) |
扭轉剛度KT(Nm/radxE+06) |
轉動慣量(Kgm^2) |
中間段每米長 |
角向不對中 |
軸向不對中 |
||||
|
質量(Kg) |
扭轉剛度ΔKT(Nm/radxE+06) |
轉動慣量(Kgm^2) |
特大θmax(deg) |
角向剛度(Nm/radxE+03) |
特大 |
軸向力（N） |
|||||
|
TBR6115 |
45 |
6.2 |
0.15 |
0.009 |
4.7 |
0.00389 |
0.00612 |
0.375 |
110.3 |
2 |
902 |
|
TBR6135 |
45 |
11.6 |
0.25 |
0.021 |
6.0 |
0.099 |
0.013 |
0.375 |
119.5 |
2.3 |
1056 |
|
TBR6152 |
45 |
14.3 |
0.32 |
0.034 |
6.9 |
0.158 |
0.021 |
0.375 |
155.7 |
2.4 |
1368 |
|
TBR6175 |
85 |
19.5 |
0.42 |
0.076 |
10.4 |
0.289 |
0.035 |
0.375 |
168.2 |
2.6 |
2100 |
|
TBR6196 |
160 |
27.2 |
0.75 |
0.132 |
11.8 |
0.455 |
0.047 |
0.375 |
205.3 |
2.8 |
2306 |
|
TBR6210 |
160 |
34.5 |
1.12 |
0.181 |
13.5 |
0.702 |
0.085 |
0.375 |
213.6 |
3.0 |
3256 |
|
TBR6231 |
160 |
47.5 |
1.94 |
0.28 |
15.1 |
0.836 |
0.129 |
0.375 |
401.9 |
3.1 |
3654 |
|
TBR6247 |
160 |
58.3 |
2.35 |
0.41 |
22.6 |
1.536 |
0.172 |
0.375 |
447.2 |
3.3 |
3946 |
|
TBR6272 |
280 |
68.5 |
2.95 |
0.65 |
26.5 |
2.03 |
0.216 |
0.375 |
535.2 |
3.5 |
4653 |
|
TBR6300 |
280 |
82.3 |
4.86 |
1.02 |
39.5 |
2.76 |
0.444 |
0.375 |
592.3 |
3.6 |
5621 |
|
TBR6330 |
340 |
126.5 |
7.12 |
1.62 |
47.3 |
5.422 |
0.522 |
0.375 |
667.2 |
3.8 |
7624 |
|
TBR6360 |
540 |
158.2 |
9.85 |
2.43 |
53.2 |
7.032 |
0.755 |
0.375 |
720.3 |
4 |
9678 |
|
TBR8212 |
160 |
35.2 |
1.75 |
0.192 |
13.5 |
0.702 |
0.085 |
0.25 |
704.5 |
2 |
1458 |
|
TBR8233 |
160 |
48.6 |
2.2 |
0.29 |
15.1 |
0.836 |
0.129 |
0.25 |
1130 |
2.2 |
3542 |
|
TBR8248 |
160 |
59.3 |
2.85 |
0.43 |
22.6 |
1.536 |
0.172 |
0.25 |
1469 |
2.4 |
4216 |
|
TBR8274 |
280 |
70.2 |
3.92 |
0.72 |
26.5 |
2.03 |
0.216 |
0.25 |
1635 |
2.6 |
4568 |
|
TBR8302 |
280 |
83.2 |
5.42 |
1.13 |
39.5 |
2.76 |
0.444 |
0.25 |
1989 |
2.8 |
6542 |
|
TBR8333 |
340 |
127.2 |
8.54 |
1.73 |
46.3 |
5.422 |
0.522 |
0.25 |
2653 |
3.0 |
9326 |
|
TBR8363 |
540 |
159.5 |
9.93 |
2.68 |
51.2 |
7.032 |
0.755 |
0.25 |
3456 |
3.3 |
12681 |
|
TBR8396 |
540 |
202.3 |
11.86 |
3.95 |
56.1 |
8.865 |
0.923 |
0.25 |
7864 |
3.4 |
13653 |
|
TBR8425 |
800 |
273.5 |
14.76 |
5.68 |
71.5 |
14.65 |
1.101 |
0.25 |
6859 |
3.6 |
15782 |
|
TBR8457 |
800 |
316.4 |
18.65 |
6.96 |
87.3 |
16.83 |
1.522 |
0.25 |
6971 |
3.8 |
16524 |
|
TBR8493 |
800 |
388.5 |
22.47 |
11.53 |
94.6 |
21.32 |
2.11 |
0.25 |
7865 |
4.0 |
18936 |
|
TBR8525 |
1200 |
472.5 |
25.87 |
15.72 |
105.3 |
25.66 |
2.56 |
0.25 |
8654 |
4.2 |
19856 |
|
TBR8570 |
1200 |
583.5 |
34.61 |
23.65 |
136 |
40.37 |
4.03 |
0.25 |
8475 |
4.6 |
20541 |
|
TBR8610 |
1800 |
667.4 |
44.56 |
31.11 |
147 |
50.8 |
5.07 |
0.25 |
9246 |
5 |
21456 |
|
TBR0365 |
540 |
160.5 |
12.13 |
2.88 |
51.2 |
7.032 |
0.755 |
0.165 |
7756 |
2.8 |
7652 |
|
TBR0400 |
540 |
203.5 |
15.24 |
4.15 |
56.1 |
8.865 |
0.923 |
0.165 |
12589 |
3.0 |
9862 |
|
TBR0430 |
800 |
275.4 |
16.65 |
5.98 |
71.5 |
14.65 |
1.101 |
0.165 |
21870 |
3.2 |
10635 |
|
TBR0460 |
800 |
318.4 |
23.15 |
7.31 |
87.3 |
16.83 |
1.522 |
0.165 |
24254 |
3.6 |
14963 |
|
TBR0496 |
800 |
390.5 |
26.45 |
12.21 |
94.6 |
21.32 |
2.11 |
0.165 |
26587 |
3.8 |
16985 |
|
TBR0537 |
1200 |
483.5 |
32.13 |
16.24 |
105.3 |
25.66 |
2.56 |
0.165 |
28954 |
4.0 |
18635 |
|
TBR0580 |
1200 |
590.1 |
38.26 |
24.35 |
136 |
40.37 |
4.03 |
0.165 |
33000 |
4.6 |
19886 |
|
TBR0630 |
1800 |
675.4 |
46.82 |
33.33 |
147 |
50.8 |
5.07 |
0.165 |
34251 |
5.2 |
23687 |
◆聯軸器尺寸C、L、E、F是根據使用性能建議的標準值，可按用戶要求設計。其它尺寸的L值，其扭轉剛度、轉動慣量等應另算；
◆徑向不對中數值是角向不對中和中間節長度的函數，可近似按正切函數推倒；
◆扭轉剛度是按表中結構尺寸得出的(已計入軸的配合段)，當用戶有特殊需要時可通過調整中間段長度E或有關尺寸而獲得。若僅中間段長度E有變化，扭轉剛度可由下式計算出：
式中: K-所需扭轉剛度 -表上的扭轉剛度 -中間段每米扭轉剛度量 -尺寸E的變化值
◆對于有熱膨脹的機組，安裝時應考慮冷態預拉伸量，使撓性元件工作在較小的變形區間，提高使用壽命；

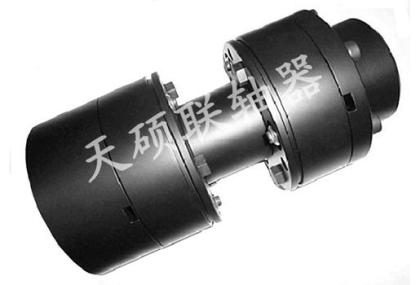

其它系列高速膜片聯軸器
根據客戶需要我們又將現有的型式進行了拓展來滿足客戶的需求，下面是結構簡圖：
